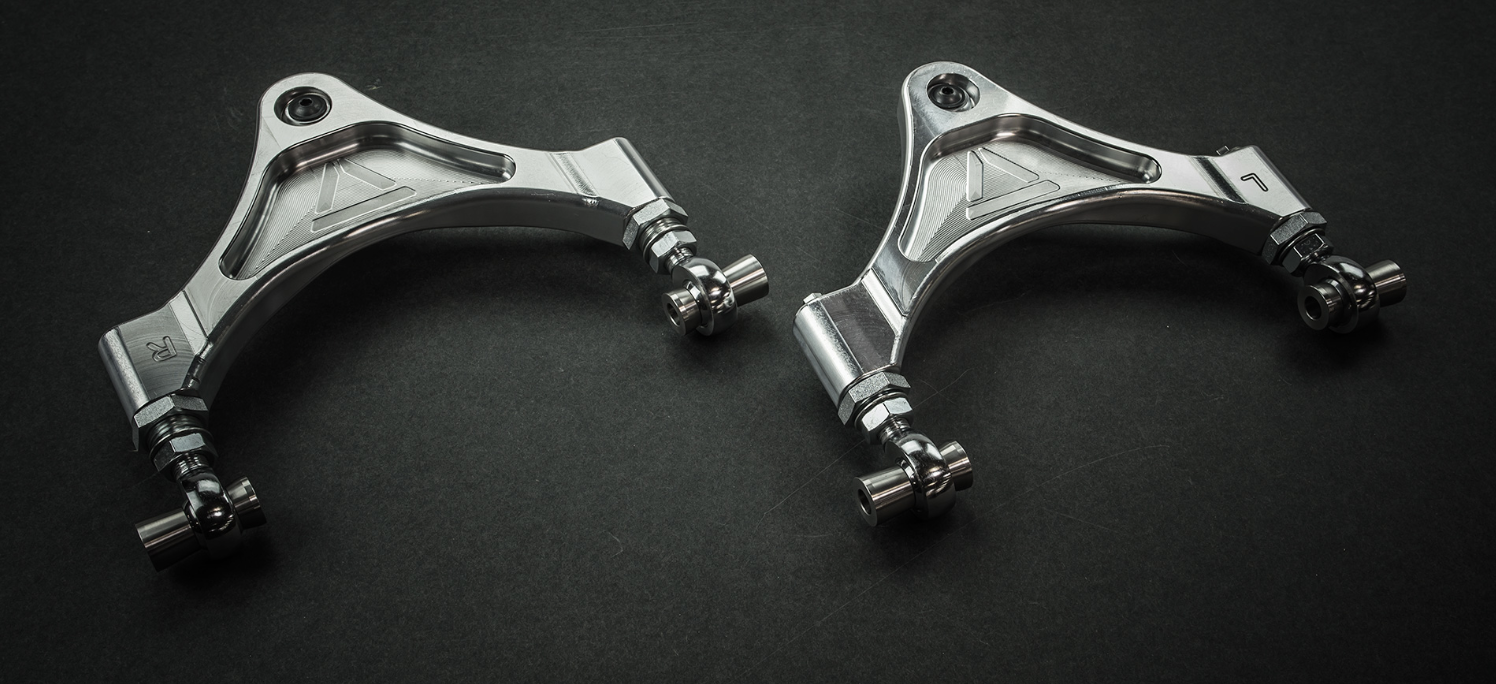

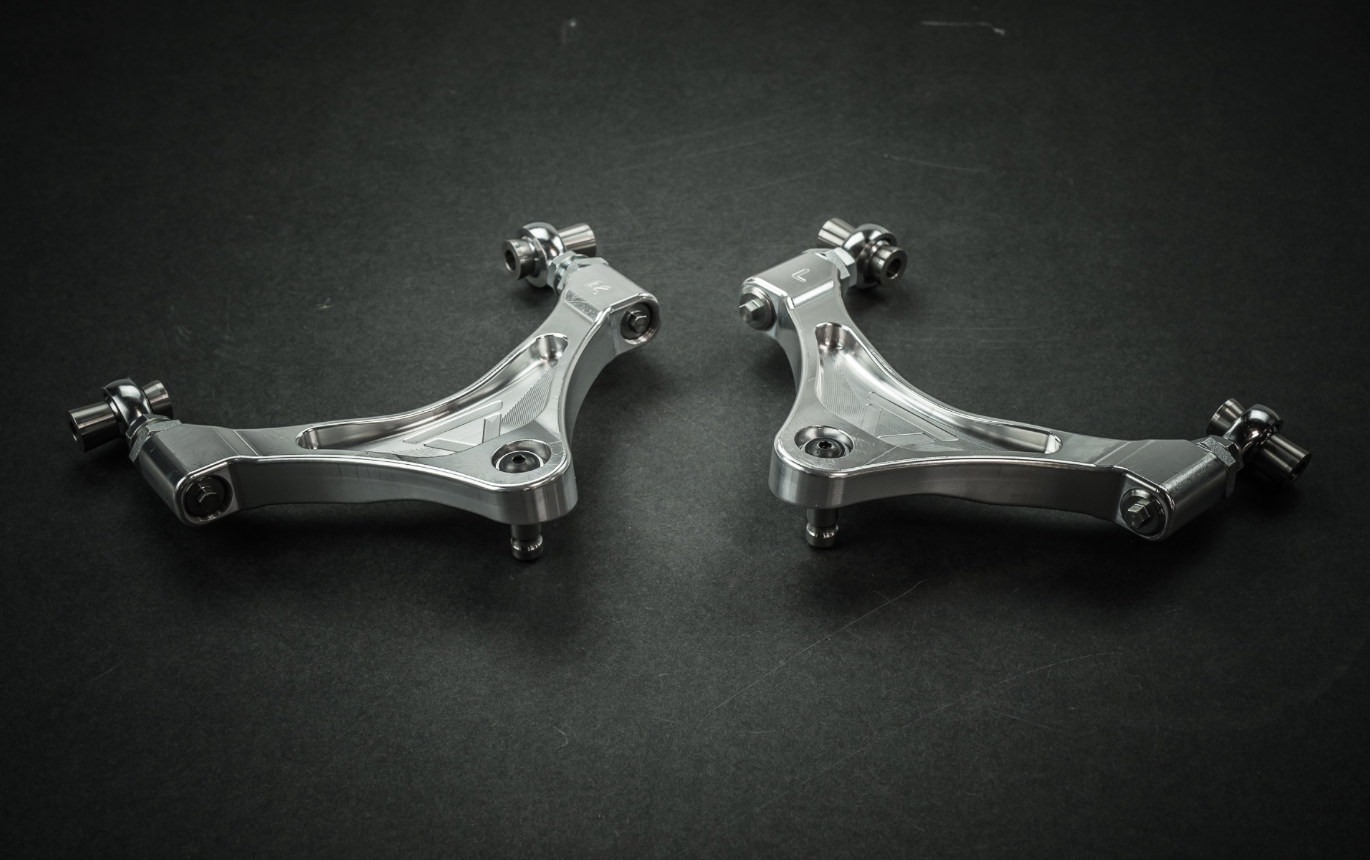

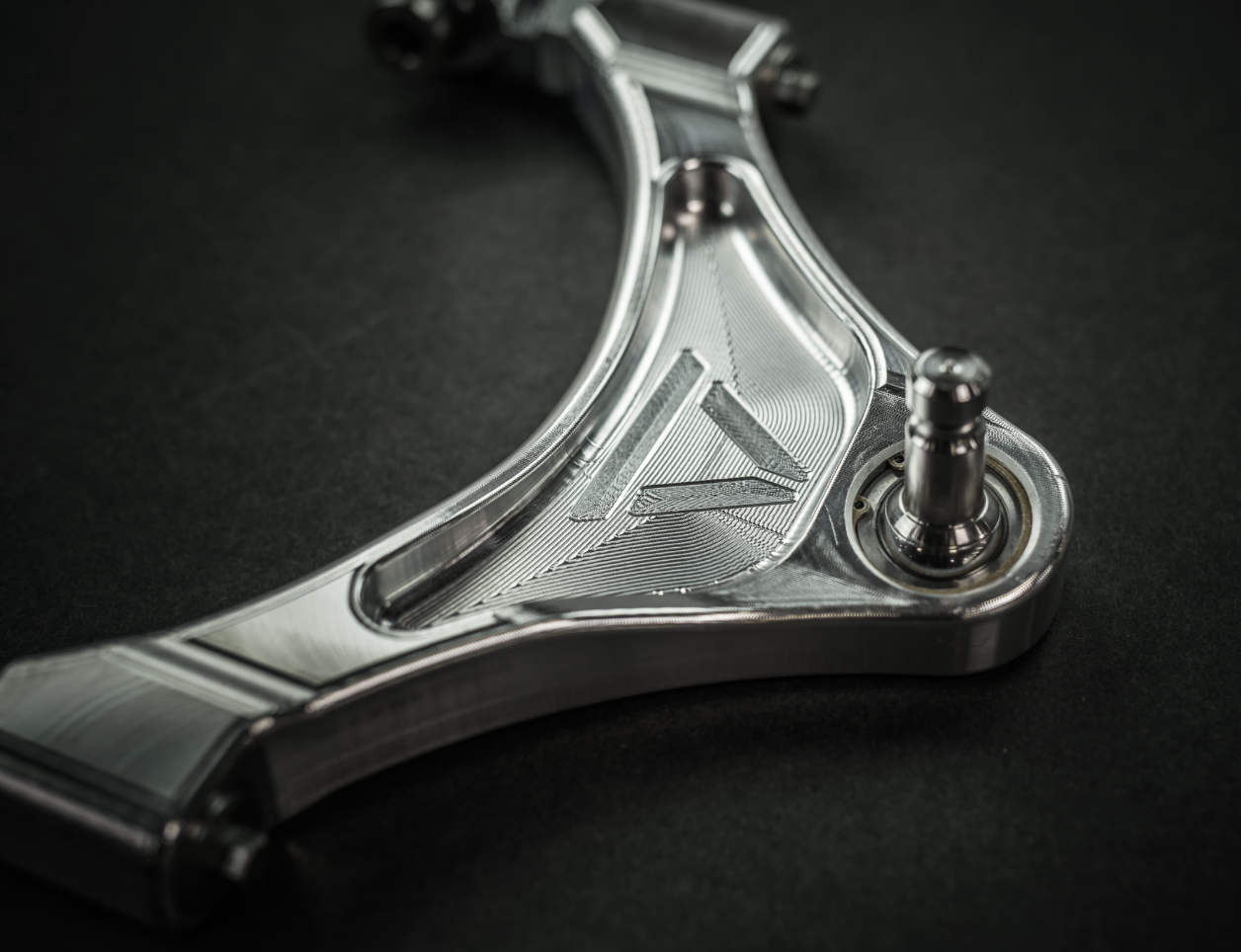

Voodoo13 is now accepting pre-orders for their new dual adjustable front upper control arms for the Nissan 370Z and Infiniti G37. These caster control arms are made from CNC milled aerospace grade 6061 aluminum, sporting not only dual adjustment functionality, but also an innovative design. The slim upper spindle mount helps to prevent upper control arm slap from excessively lowered cars, while utilizing an encased spherical bearing design that prevents deformation from impact or high driving forces over time. The easy-to-reach dual adjusters allow for both caster and camber correction, all while never being unbolted from the car, to suite any application. Read below for more information regarding these arms, and check out all of our Voodoo13 products here.
Adjustment Range:Â Â +/- 2Â degrees relative to stock arm and depending on ride height. 4 degrees of caster adjustment is available separate from camber. The Voodoo13Â test vehicle was equipped with coilover suspension and stock upper arms, and had -3.2 degrees camber. During testing, they achieved -5.2 and -.8 degrees after adjusting to the maximum settings.
Features:
- Offset spacers allow extra caster adjustment
- CNC Machined Aerospace Grade Aluminum
- Slim profile for extremely lowered vehicles
- Unique Design for aesthetics and 100% functionality
- Made in the USA QA1 spherical bearings and rod ends
Additional Information:
*Weight: 12 lbs
*Dimensions: 24 x 11 x 5 in
*Color: Raw, Hard OD Green, Hard Clear (Grey)
*Part Number:Â FCNS-0400
Installation Instructions:
09+ Nissan 370z Z34
07-08 Infiniti G35 V36 Sedan
08+ Infiniti G25/G37 V36 Sedan and Coupe
Voodoo13 New 370Z and G37 Front Upper Camber Caster Arms
